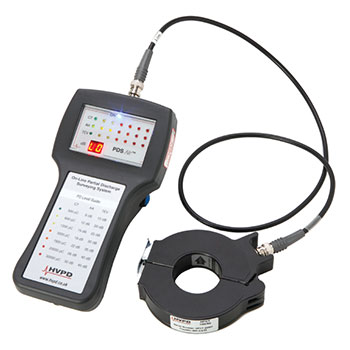

Manufacturer: High Voltage Partial Discharge Ltd.

Equipment performance: used in PD testing of high voltage electrical equipment such as power transformer, underground cable, switchgear, rotating machines, and so forth.

Why is it crucial to test for PD?

       1. The occurrence of PD is undetectable through normal check-ups in high voltage equipment. In the case of a dry-type transformer, annual routine check-ups are insufficient in determining the condition of the transformer. Therefore, explosions would often occur before the problem became noticed.

       2. Certain high voltage equipment is located inside secured enclosures which poses danger when opened for check-ups. Increase safety is achieved through PD testing using our designated sensors and analyzers without the risk of opening certain equipment.

       3. PD testing allows an early detection of any problems which could pose risk to machine failure in the upcoming future. Additional repair costs are also reduced with early detection.

Outstanding Features

       1. Three types of detection sensors: ultrasonic, electromagnetic (HFCT), transient earth voltage (TEV)
       2. Available on-line PD testing
       3. Compact and portable device with a simple interface, easy to analyze
       4. Global usage reference from elite companies and electrical authorities


Equipment usage example

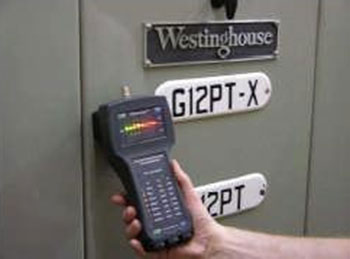

PD testing on secured equipment

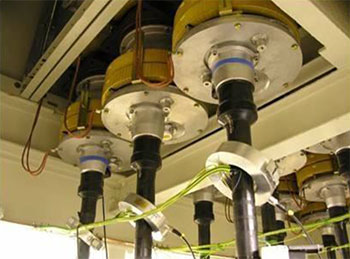

PD testing on power cables

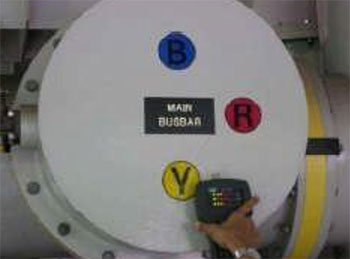

PD testing on GIS switchgear
